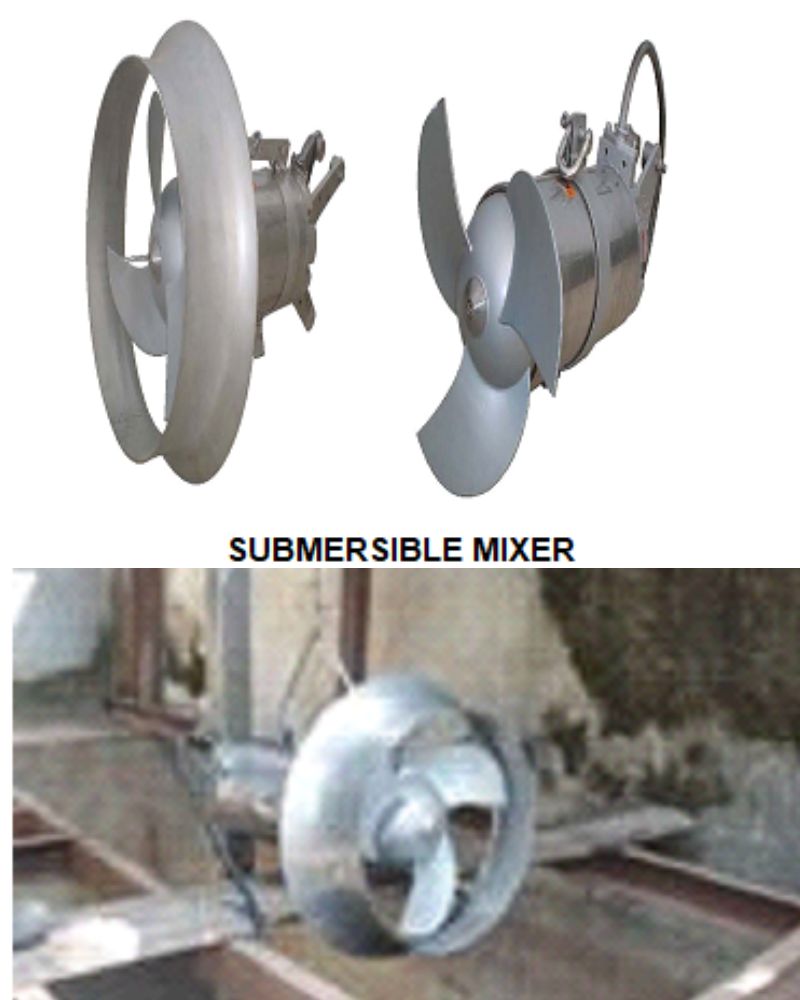

Submersible Mixer

Conditions of Usage:

  • The highest temperature of the media shall not exceed 40°C
  • The pH value of the media: 5-9
  • The density of the media shall not exceed 1150Kg/m3
  • The depth of submersion shall not exceed 20m
  • The electric power supply: 400V, 50Hz
  • The motor class insulation and in accordance with IP68, continuous operating for 24hr.
  • The submersible mixer must be put into operation only on complete submersion into water.

Range of Applications:

The submersible mixer range fom FFP include Submersible Mixer (High Speed) and Submersible Mixer (Low Speed) mainly used for-

  • The purpose of mixing, agitating and making ring flows in the process of municipal and industrial sewage treatment- Activated sludge tank, bio reactor tank, mixing tank, sludge silos, equalizing reservoir, Sewage tank etc.
  • The equipment for maintaining the water landscape environment using water flow.
  • Increasing the oxygen content in water and improving the quality of the water body.
  • Effectively preventing the sedimentation of the suspended particles.

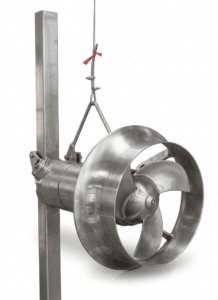

Submersible Mixer (With Dome)

Request For Quotatation
Request For Quotatation

Features:

  • The two rows of independent mechanical sealing ensure the long-term and reliable operation of the submersible motor.
  • The imported high-quality one-service lubricated bearing have the designed service life for 100,000 hours.
  • The unique sealing design for the cables prevents water leakage to the cables.
  • The shaft of the motor employs stainless steel, and the rotors are dynamically balanced, leading to smooth vibration free performance.
  • The in built leakage sensor and the alarm device for over temperature; protect the winding of the stator.
  • The submersible mixers have welding precision - cast stainless steel and carbon steel vanes, which are of the sweptback shape for optimized design, resulting in high efficiency and self-cleaning function.
  • The vanes of the low-speed flow propeller are made of elasticPUor aluminium alloy, resulting in the ability to withstand the varying load, the
  • Propelling power is equally distributed and the provides an optimized hydraulic design.
  • On the low-speed submersible mixer, all the tightening pieces for the contact media use stainless steel material only.
  • Longer Gear Life
